Large Inch Infrared Touch Frame Tb Series Multi Touch Points Touch Overlay

Name: Large Inch Infrared Touch Frame Tb Series Multi Touch Points Touch Overlay
Brand: GreenTouch
Price: 1 USD

Wholesale Large Inch Infrared Touch Frame Tb Series Multi Touch Points Touch Overlay from china suppliers

Brand Name : GreenTouch

Model Number : GT-IR-TＢ85.0-1

Certification : CE, FCC, ROHS

Place of Origin : China

MOQ : 50

Payment Terms : T/T, MoneyGram

Supply Ability : 10,000pcs per month

Delivery Time : 3-7 working days after received your payment

Packaging Details : carton

Screen Ratio : 16:9

Communication : USB 2.0 Full Speed

Average Current : ≤200mA

Touch Refresh Rate : ≥ 110Hz

Power Cunsumption : ≤ 1.0W

LED Lifetime : 60000hours

Size : 85"

Contact Now

Standard Black 85 Inch Infrared Touch Frame CE , FCC , ROHS Certification

Product Model number

Model number	Ratio	Outline(mm)	Active Area(mm)	Thickness(mm)	Touch point
GT-IR-TB85.0-1	16:9	1915.4*1096.4	1874*1055	16.0	16

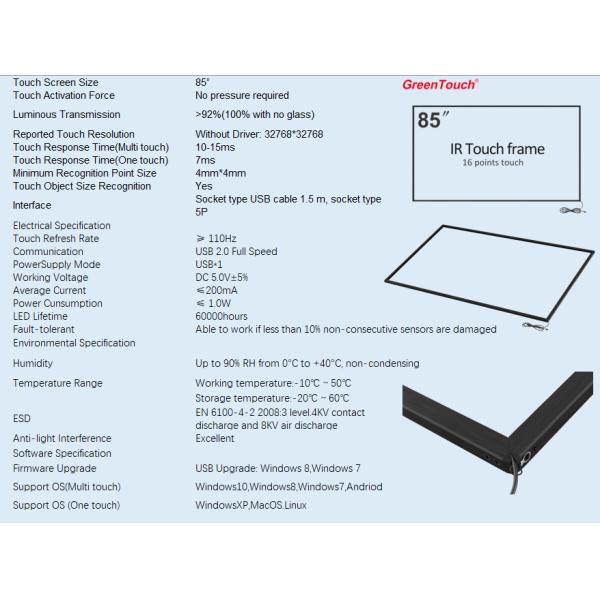

Main specification

Large Inch Infrared Touch Frame Tb Series Multi Touch Points Touch Overlay

Application:

TV
PC
Gaming device
Exhibition
Education training
Pubic query machine
Self-service machine
Map directory
Any interactive machine
And more

Large Inch Infrared Touch Frame Tb Series Multi Touch Points Touch Overlay

Technical Principle:

Infrared touch screen is to use a dense matrix of infra-red x, y directions to detect and locate the user's touch. Infrared touch screen installed in front of the monitor box outside a circuit board, circuit board arranged on four sides of the screen infrared led and an infrared receiver and corresponding anyway cross the infrared matrix.
When users touch the screen, fingers will be blocked anyway after the location for both infrared and therefore can judge the position of the touch points on the screen .it can detect essentially any input including a finger, gloved finger, stylus or pen.
